Instructions

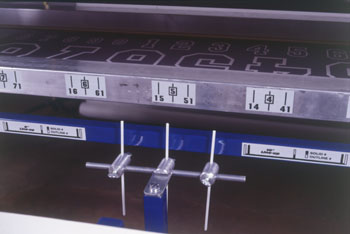

LINE-UP GUIDES


Guides are adjustable for different size number screens. Use middle guide for single digit #'s. For double digit numbers use the FAR RIGHT guide (pointer)for the first digit and use the far left guide for the second digit.

EXAMPLE: #5
The middle guide (pointer) would be used by placing it under the boxed in #5. Remember the middle guide is used for single digit numbers only.

EXAMPLE: #54
The right guide would be used by placing it under the boxed-in #5 The left guide would be used by placing it under the boxed-in #4

EXAMPLE: #15
The right guide would be used by placing it under the boxed in #1. The left guide would be used by placing it under the mark 15 not the boxed #5. This will compensate for the narrower size of the #1.

SPECIAL NOTE: The #1
The number 1 will always, always, always be printed using the boxed-in #1 - EXCEPT for the #11. In the case of the #11, you use the right guide under the right #11 and you use the left guide under the left #11.

Except for the #11 you will always print the #1 on the boxed-in #1.

Assembly (Front View)  |  Guidelines (Guideline View)
Arms and Rollers (Side View)  |  Outline Screen (Outline View)
