Instructions

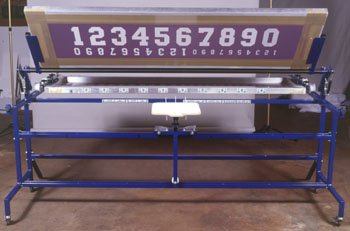

FRONT VIEW
Assemble the four 8ft. rails first. Match up the letters on the rails to the letter on the ends. Place the screen channels on the marks on the silver bar. Then assemble the silver bar into the ends of the machine.
Note: Be sure to place screen arms on silver bar BEFORE mounting bar!
Assembly (Front View) | Guidelines (Guideline View)
Arms and Rollers (Side View) | Outline Screen (Outline View)
